Made in Italy
SUZUKA expanded metal
| Maglia Mesh DL LWD | Spessore Thickness | Spessore tot. Total thickness | Formato Hmax//DL Dimension Hmax//LWD | Peso Weight  | Peso Weight  | Vuoto/Pieno Frontale Front Open Area | Max Open AreaVuoto/Pieno Max Max Open Area | Send inquiry |
|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [Kg/m2] | [Kg/m2] | [%] | [%] | |
| 62 | 1,5 | ~ 12 | 2000 | 2,90 | 8,50 | 34 | 65 | |
| 62 | 2 | ~ 12 | 2000 | 3,90 | 11,30 | 34 | 65 | |
| 62 | 3 | ~ 12 | 2000 | 5,80 | 17,00 | 34 | 65 |
Aluminium
Mild Steel, Galvanized Steel; Stainless Steel
Suzuka expanded metal Technical data sheet 1 MB (2 pages)
Expanded metal brochure 2,8 MB (68 pages)

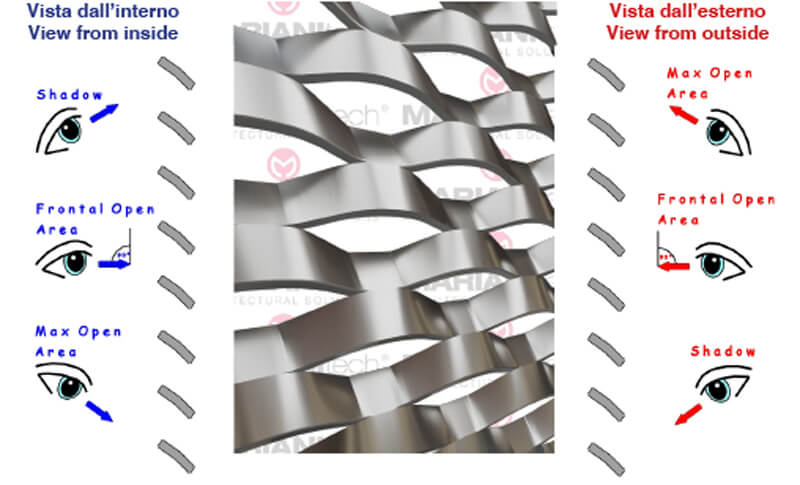

Install a shading means using an item that gives the possibility of shielding all or part of the passage of sunlight while allowing the passage of air. Expanded metal is by nature a material that contains these two features, while having the advantage of being able to add an aesthetic and architectural value to each application.
Fixing & Mounting options
The fixing systems provide a variety of solutions for understructures and framing, making the expanded metal ready for installation.
Select from among the different types of understructures for the mounting of expanded metal.
