Made in Italy
SORBONA expanded metal
| Maglia Mesh DL LWD | Thickness | Total Thickness | Dimension Hmax | Peso Weight  | Peso Weight  | Vuoto/Pieno Frontale Front Open Area | Vuoto/Pieno Max Max Open Area | Send inquiry |
|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [Kg/m2] | [Kg/m2] | [%] | [%] | |
| 76 | 1,50 | ~ 11 | 2000 | 3,7 | 10,8 | 9 | 44 | |
| 76 | 2,00 | ~ 11 | 2000 | 4,8 | 13,8 | 9 | 44 |
Aluminium Mild Steel, Galvanized Steel; Stainless Steel
Sorbona expanded metal Technical data sheet 0,34 MB (2 pagine)
Expanded metal brochure 2,8 MB (68 pages)

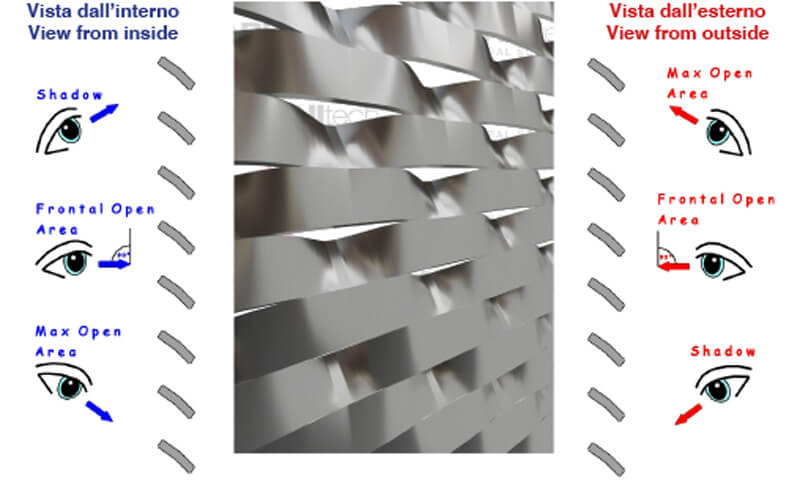

Install a shading means using an item that gives the possibility of shielding all or part of the passage of sunlight while allowing the passage of air. Expanded metal is by nature a material that contains these two features, while having the advantage of being able to add an aesthetic and architectural value to each application.
Fixing & Mounting options
The fixing systems provide a variety of solutions for understructures and framing, making the expanded metal ready for installation.
The fixing systems provide a variety of solutions for understructures and framing, making the expanded metal ready for installation.
