Made in Italy
SHIBUYA expanded metal
Mesh LWDxSWD  | Thickness | Total Thickness | Dimension Hmax | Weight Alu.  | Weight M.G.S. Steel  | Front Open Area | Max Open Area | Send inquiry |
|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [Kg/m2] | [Kg/m2] | [%] | [%] | |
| 8 | 0,8 | ~1,5 | 1500 | 0,9 | 2,7 | 50 | 57 |
Aluminium
Mild Steel, Galvanized Steel; Stainless Steel
Shibuya expanded metal Technical data sheet 1,8 MB (2 pages)
Expanded metal brochure 2,8 MB (68 pages)

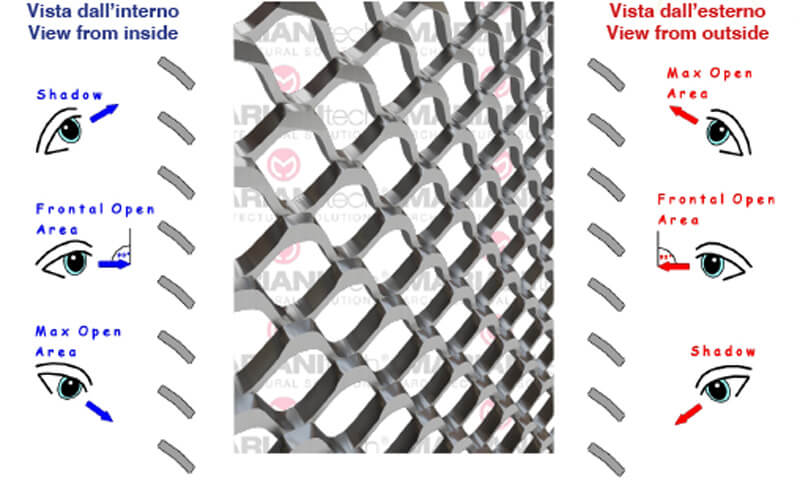

Install a shading means using an item that gives the possibility of shielding all or part of the passage of sunlight while allowing the passage of air. Expanded metal is by nature a material that contains these two features, while having the advantage of being able to add an aesthetic and architectural value to each application.
Fixing & Mounting options
The fixing systems provide a variety of solutions for understructures and framing, making the expanded metal ready for installation.
Select from among the different types of understructures for the mounting of expanded metal.
