Made in Italy

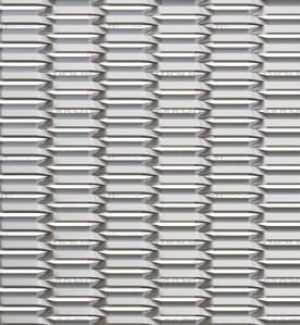

RIBERA expanded metal
| Maglia Mesh DL LWD | Thickness | Total Thickness | Dimension Hmax | Weight  | Weight  | Vuoto/Pieno Frontale Front Open Area | Vuoto/Pieno Max Max Open Area | Send inquiry |
|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [Kg/m2] | [Kg/m2] | [%] | [%] | |
| 45 | 1,00 | ~ 5 | 2000 | 2,40 | 6,90 | 13 | 49 | |
| 45 | 1,50 | ~ 5 | 2000 | 3,40 | 10,00 | 13 | 49 | |
| 45 | 2 | ~ 5 | 2000 | 4,6 | 13,4 | 13 | 49 |
Aluminium
Mild Steel, Galvanized Steel; Stainless Steel
Ribera expanded metal Technical data sheet 0,34 MB (2 pages)
Expanded metal brochure 2,8 MB (68 pages)

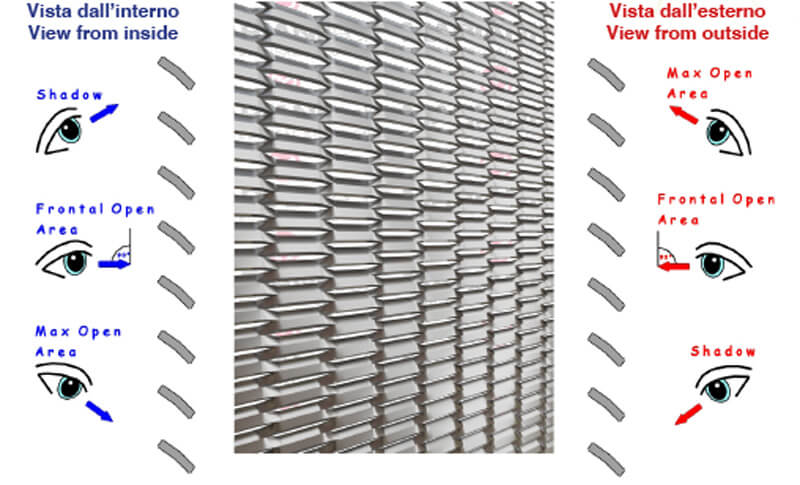

Install a shading means using an item that gives the possibility of shielding all or part of the passage of sunlight while allowing the passage of air. Expanded metal is by nature a material that contains these two features, while having the advantage of being able to add an aesthetic and architectural value to each application.
Fixing & Mounting options
The fixing systems provide a variety of solutions for understructures and framing, making the expanded metal ready for installation.
Select from among the different types of understructures for the mounting of expanded metal.
