GEZIRA expanded metal
| Mesh LWDxSWD | Thickness | Total Thickness | Dimension Hmax | Weight Alu.  | Weight M.G.S. Steel  | Front Open Area | Max Open Area | Send inquiry |
|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [Kg/m2] | [Kg/m2] | [%] | [%] | |
| 60 | 1,50 | ~ 8 | 2000 | 2,9 | 7,9 | 35 | 70 | |
| 60 | 2,00 | ~ 8 | 2000 | 3,8 | 10,5 | 35 | 70 | |
| 60 | 3,00 | ~ 8 | 2000 | 5,7 | 15,7 | 35 | 70 |
Aluminium
Mild Steel, Galvanized Steel; Stainless Steel
Gezira expanded metal Technical data sheet 1 MB (2 pages)
Expanded metal brochure 2,8 MB (68 pages)

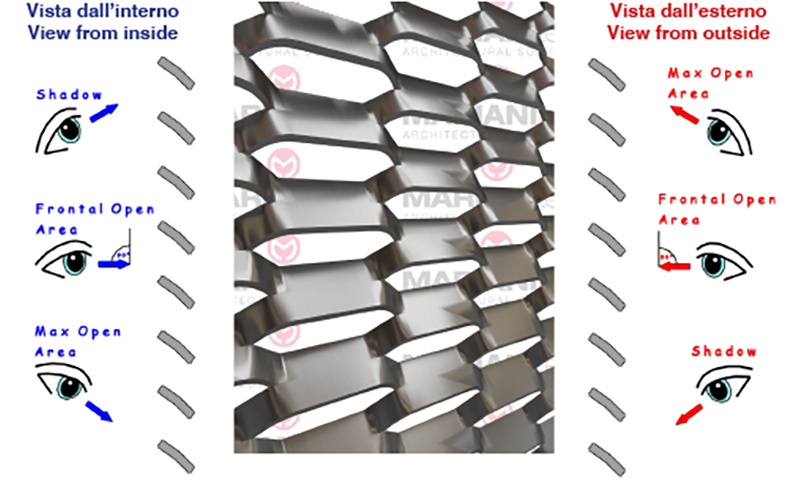

Install a shading means using an item that gives the possibility of shielding all or part of the passage of sunlight while allowing the passage of air. Expanded metal is by nature a material that contains these two features, while having the advantage of being able to add an aesthetic and architectural value to each application.
Fixing & Mounting options
The fixing systems provide a variety of solutions for understructures and framing, making the expanded metal ready for installation.
Select from among the different types of understructures for the mounting of expanded metal.
