Made in Italy
ESPLANADE expanded metal
| Maglia Mesh DL LWD | Spessore Thickness | Spessore tot. Total thickness | Formato Hmax//DL Dimension Hmax//LWD | Peso Weight  | Peso Weight  | Vuoto/Pieno Frontale Front Open Area | Vuoto/Pieno Max Max Open Area | Invia una richiesta |
|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [Kg/m2] | [Kg/m2] | [%] | [%] | |
| 122 | 1,50 | ~ 21 | 2000 | 3,3 | 9,0 | 31 | 75 | |
| 122 | 2,00 | ~ 21 | 2000 | 4,3 | 12,0 | 31 | 75 | |
| 122 | 3 | ~ 21 | 2000 | 6,5 | 17,9 | 31 | 75 |
Aluminium
Mild Steel, Galvanized Steel; Stainless Steel
Esplanade expanded metal Technical data sheet 0,34 MB (2 pagine)
Expanded metal brochure 2,8 MB (68 pages)

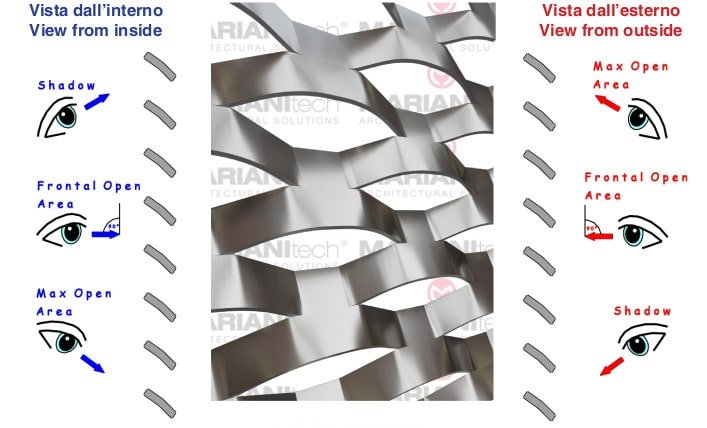

Install a shading means using an item that gives the possibility of shielding all or part of the passage of sunlight while allowing the passage of air. Expanded metal is by nature a material that contains these two features, while having the advantage of being able to add an aesthetic and architectural value to each application.
Fixing & Mounting options
The fixing systems provide a variety of solutions for understructures and framing, making the expanded metal ready for installation.
The fixing systems provide a variety of solutions for understructures and framing, making the expanded metal ready for installation.
